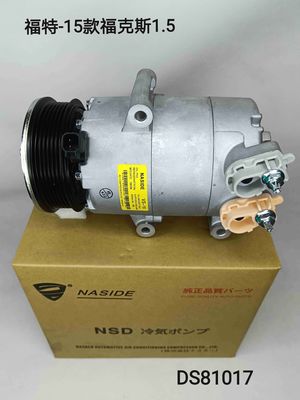

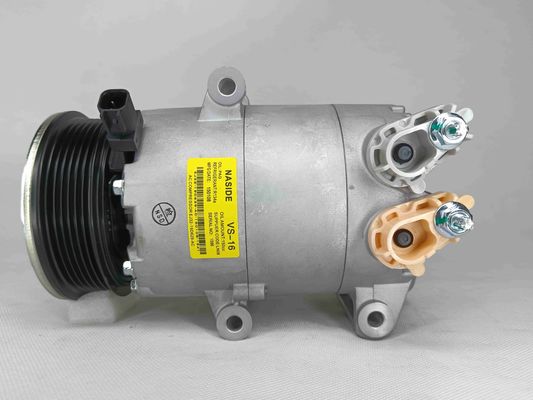

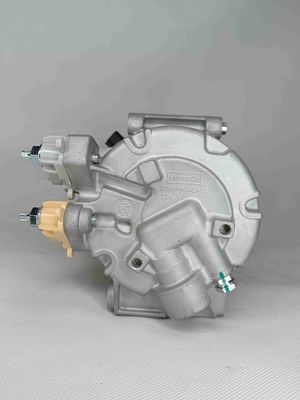

R134a Auto Air Conditioner Compressor For FORD Focus1.5 F1F119D629C2A
| Place of Origin | Made in China |
|---|---|
| Brand Name | NASIDE |
| Certification | SGS/ISO9001 |
| Model Number | DS81017 |
| Minimum Order Quantity | Negotiable |
| Price | RMB:300-800 |
| Packaging Details | Neutral packing/NASIDE packing/Customized packing |
| Delivery Time | 10-30 Days |
| Payment Terms | T/T,Western Union |
| Supply Ability | 50000 Per Month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Weight | 7-8kgs | Type | Compressor |
|---|---|---|---|
| Car Maker | For FORD Focus1.5 | NASIDE Number | DS81017 |
| Pulley Diame | 12V | Model | AC Compressor |
| Number Of Grooves | 6PK | Warranty | 1 Year |
| Size | We Can Provide The Drawing | Refrigerant | R134a Auto Ac Compressor |
| OEM | F1F119D629C2A | ||
| Highlight | R134a Auto Air Conditioner Compressor,FORD Focus1.5 AC Compressor,F1F119D629C2A Auto Air Conditioner Compressor |
||
Product Description
Auto Ac Conditioning Compressor For FORD Focus1.5 F1F119D629C2A
|
Model Number |
DS81017 |
|
OEM |
F1F119D629C2A |
|
Refrigerant |
R134a |
|
Pulley Diameter |
110MM |
|
Voltage |
12V |
|
Grooves |
6PK |
1.Technical characteristics
Variable displacement adjustment: The internal swash plate Angle automatically adjusts the cooling capacity to reduce engine load fluctuations

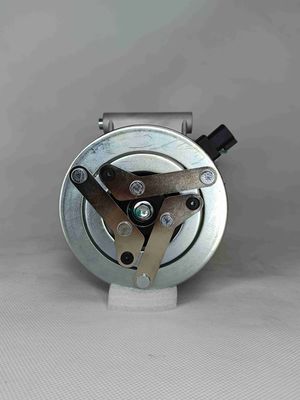

Electromagnetic clutch: Integrated coil design, operating voltage range 9-16V (compatible with start-stop system)
Lubricating oil type: PAG 46 lubricating oil specified by the original factory, the initial filling amount is about 120ml
2.Working pressure range (ambient temperature 30℃)
Low pressure side: 1.8-2.2 bar (idle)
High pressure side: 12-16 bar (extreme high temperature does not exceed 20 bar)
3.Life extension strategy
Avoid restarting the air conditioner immediately after the engine turns off (recommended interval >30 seconds)
After starting in winter, start the fan first, and then activate the compressor when the water temperature reaches 50℃
