Auto AC Compressor
Created with Pixso.

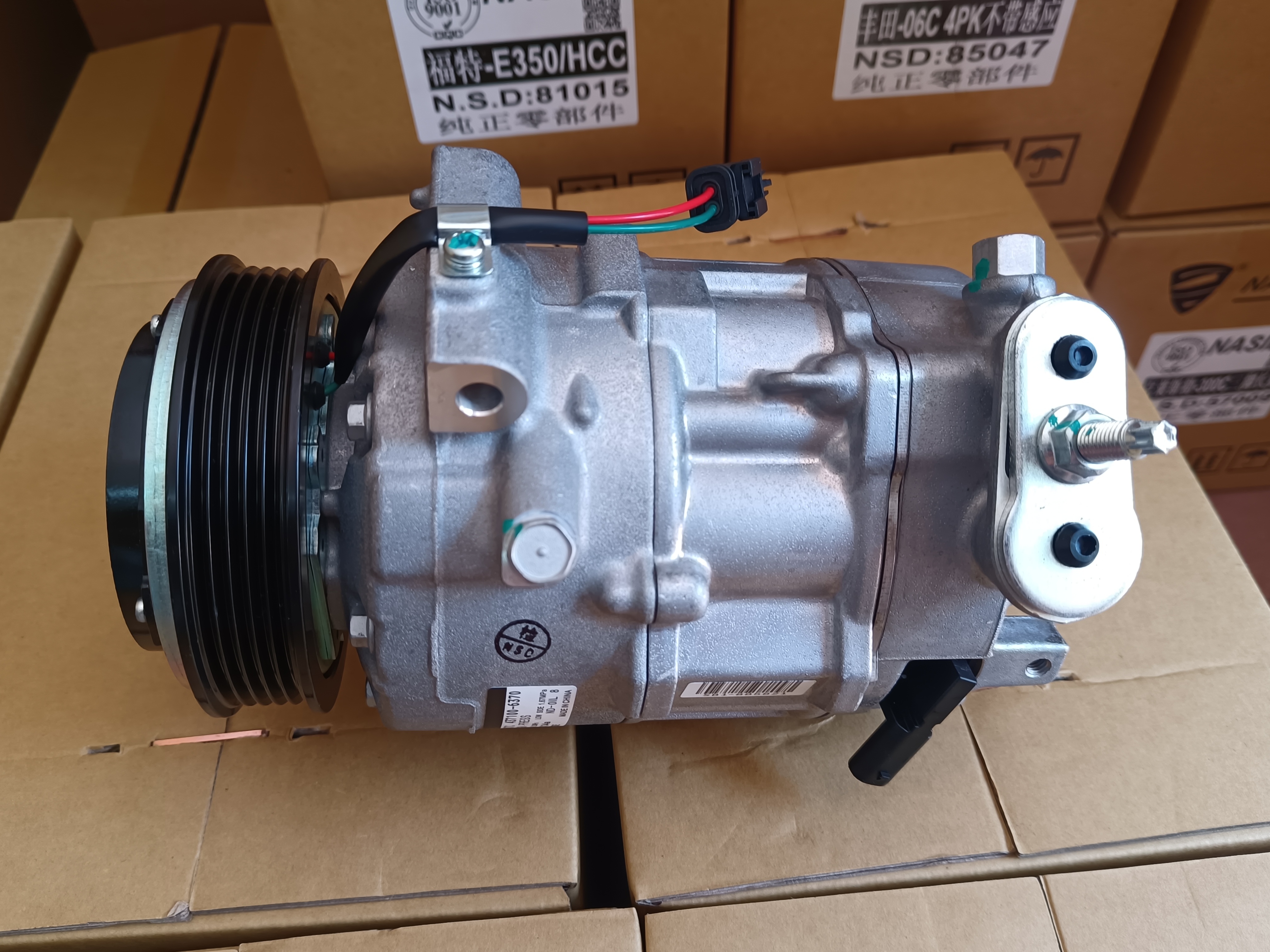

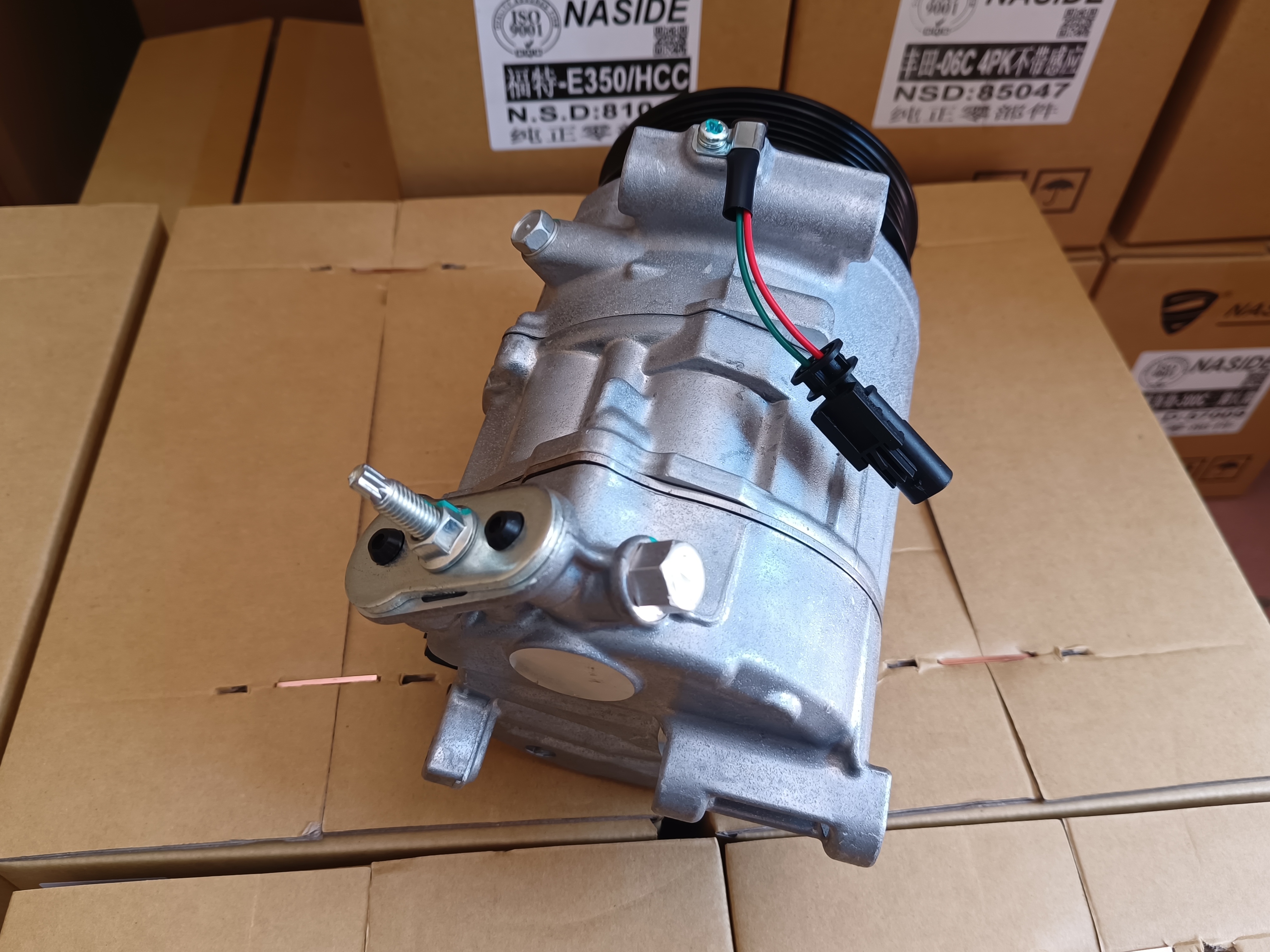

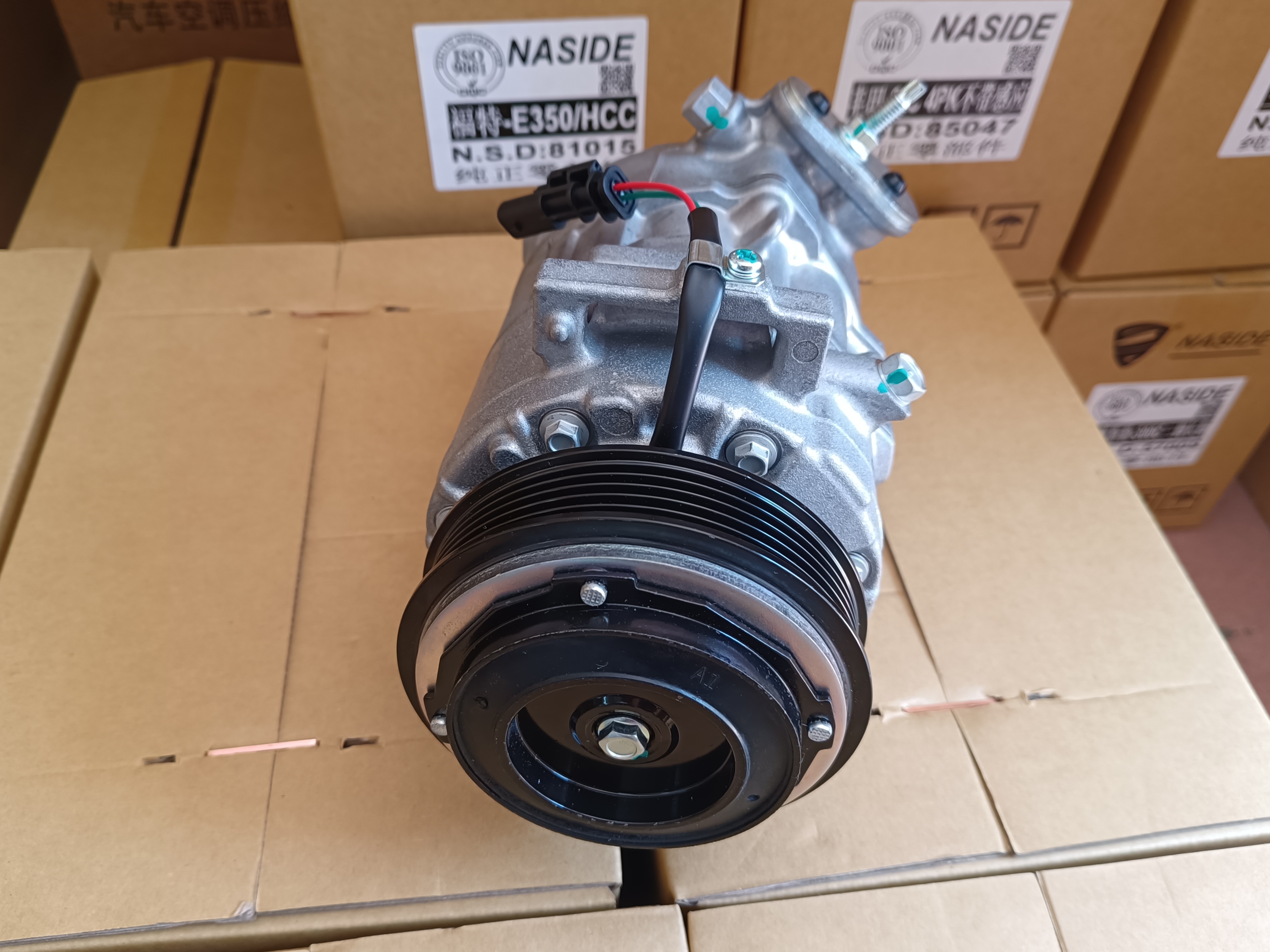

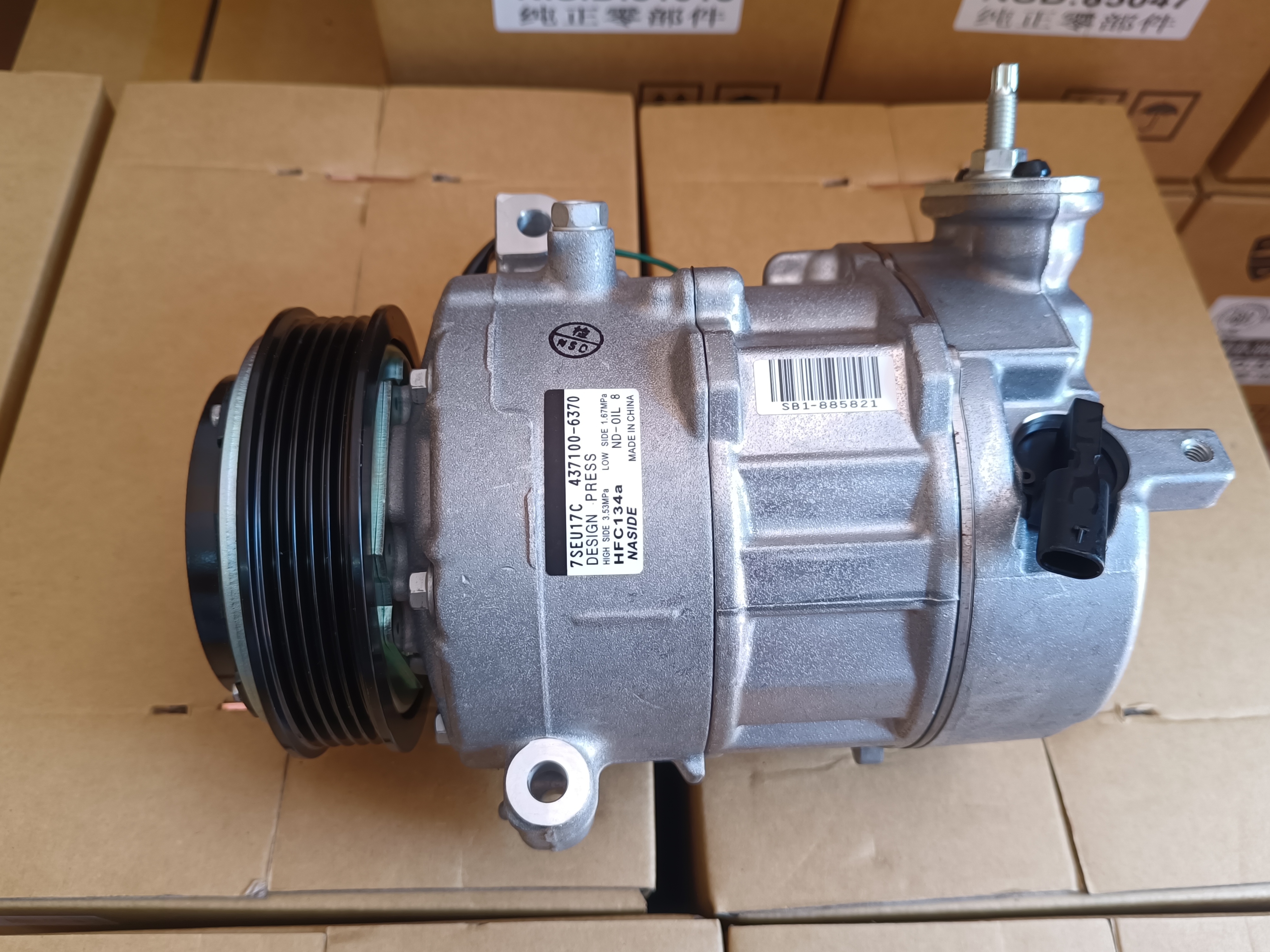

Auto AC Conditioning Compressor For Cadillac 86805575 84767892 84364335 84139372

Auto AC Conditioning Compressor For Cadillac 86805575 84767892 84364335 84139372

Brand Name: NASIDE
Model Number: DS83040
MOQ: Negotiable
Price: RMB:300-700
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2500PCS /Week
Detail Information
Place of Origin:
Made in China
Certification:
SGS/ISO9001
Oem No:
86805575 /84767892 /84364335 /84139372
Compressor Model:
Cadillac
Oil Capacity:
100-120 Ml
Car Make:
For Cadillac
Pulley Type:
Clutch
Power Source:
Engine Driven
Type:
Compressor
Compressor Type:
10S11C
Refrigerant:
R134a
Material:
Aluminum
Transport Package:
Box, Carton
Weixing Number:
DS83040
Size:
Standard Size
Packaging Details:
Neutral packing/NASIDE packing/Customized packing
Highlight:

Cadillac auto AC compressor

,

replacement AC compressor for Cadillac

,

Cadillac 86805575 AC compressor

Product Description

Auto AC Conditioning Compressor For Cadillac 86805575 84767892 84364335 84139372





NASIDE NO. DS83040
OEM 84364335
Grooves 5PK
Refrigerant R134a
Sample Support
Pulley Diameter 110MM



Parameter Specification Notes
Model Number e.g., 15-50997, 5247966 (GM/OEM-specific) Varies by model (e.g., XT5, Escalade).
Type Variable Displacement (Swash Plate) Common for energy efficiency.
Displacement 120-170 cc/rev Higher capacity in SUVs (e.g., Escalade).
Refrigerant R134a (pre-2021) / R1234yf (newer models) Compliant with EPA regulations.
Voltage 12V DC Standard system.
Rotation Direction Clockwise (CW) Verify pulley design.
Pulley Diameter ~125-140 mm Serpentine belt compatibility.
Max. RPM 6,000-7,000 RPM Optimized for quiet operation.
Lubricant PAG 46 or GM-approved oil (e.g., ACDelco) Quantity: ~120-160ml (check manual).
Weight ~4.5-6.0 kg Lightweight alloys in newer models.
Applications CT5, XT6, Escalade (2020-2025) Includes hybrid/electric variants.
